Paint Scheme

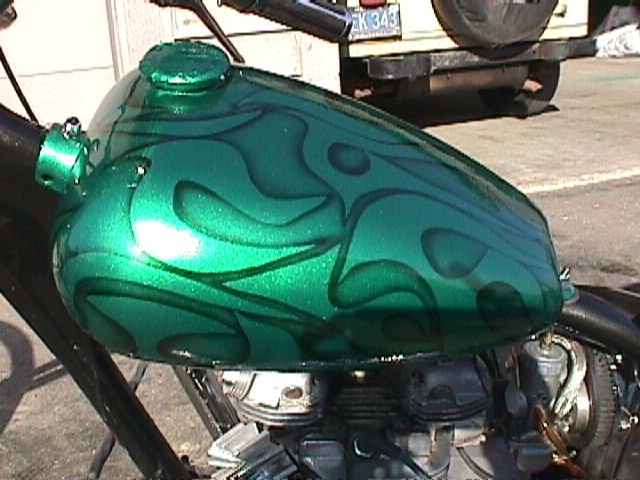

I wanted to keep with the WLA's Army theme, but didn't really want an Army bike.   Kade did a paint job on a Triumph chopper once that was one of my favorites, green metallic with black tribal print under a nice clear coat.

I was dozing in bed early one morning and thought, "Hey!  Why don't we use the same base color with tribal print... except the tribal print would be in camouflage colors... black, brown, tan, dark green with a high-gloss clear coat over the top!  We'd have the Army "thing" going but with a bitchin paint job for show!"   And yes, we do keep drugs in the house, why do you ask?  :-)

War in Iraq...

Ok, with the war in Iraq all you could see on TV were the desert camouflage.   We were inspired by the troops so we decided to switch over to desert colors.

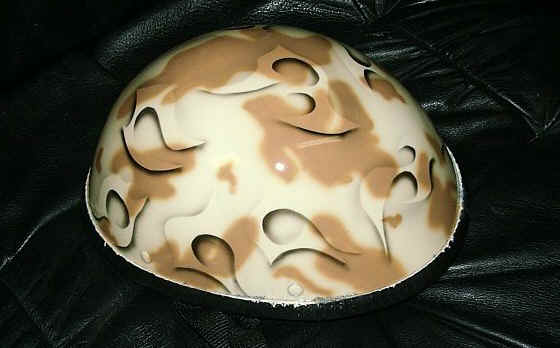

Having no idea whether this paint job was going to turn out to be the biggest bad dream I've ever had or a truly unique paint job, we decided to do a test on an old helmet that Kade had laying around.   We went to the paint store and it took us about 10 seconds to pick the colors out of a paint book...  we couldn't have picked better colors if we had spent days.  They turned out to be perfect for what we had in mind.   Kade sprayed the beige base coat and then airbrushed the tan swatches and black flames on the helmet in no time at all and we had our first look... Cool!

On To the Bike!

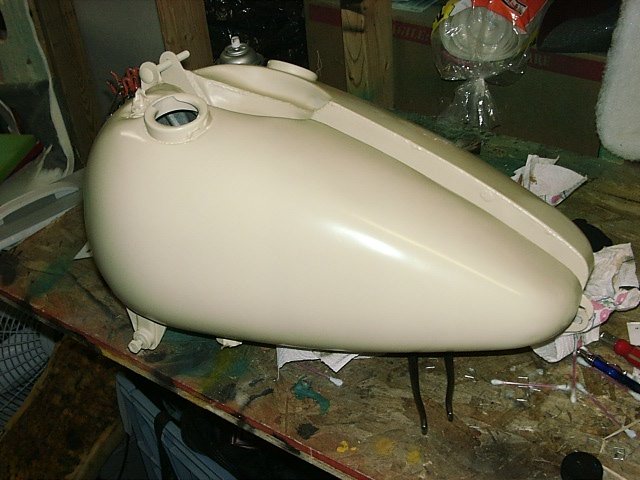

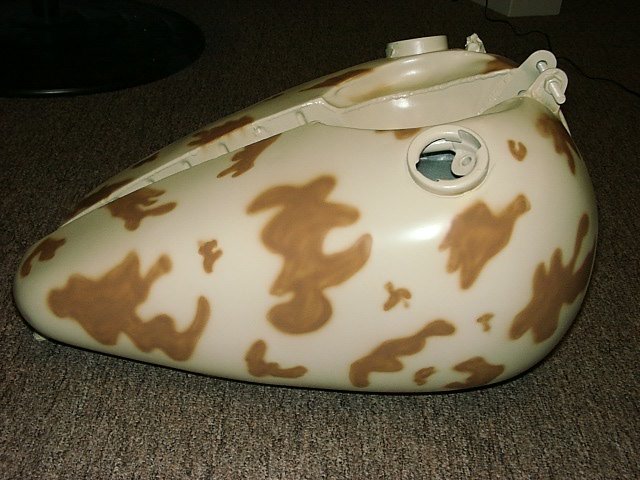

Ok, so we were happy with the design and colors.  Now, its time to do the tanks and fenders.  The front fender was new so there wasn't much to be done there.  The tanks were in pretty good shape, a few small dents but Kade worked those out and filled in the shifter attachment holes.  The big work was on the rear fender.  It had been bobbed and it looked like a woodpecker had tried to make the holes for the fender support so Kade did a lot on it.

Paint Details

The paint we used was PPG Deltron:
bulletDBU27870 Tan
bulletDMD642     138.6
bulletDMD622       62.4
bulletDMD663       56.2
bulletDMD641       24.9
bulletDMD647       16.2
bulletDMD658         1.9
bulletDBX695       242.2
bullet

DBU27871 Beige
bulletDMD663    409.0
bulletDBX695     113.6
bulletDMD642    100.0
bulletDMD622        9.1
bulletDMD647        9.1
bulletDMD661        1.1

bulletDRR 1185 Reducer mixed 1:1.5
bulletConcept DCU2042 Clear
bulletDCX61 Hardner
